OUR PRODUCTS
Set up your own finishing line. We manufacture the equipment to do the job and develop processes with special media and compounds that you can use in your facility.
MACHINE SIZER
Pick a style, drag the slider to your working capacity, and we'll match a model from our range.
That's larger than this style's biggest model. Try another style, or ask us about a custom build.
RECOMMENDED MODEL
VF-10
Batch bowl
MEDIA GUIDE
Shapes:
Relative guide only. Call us today to discuss your requirements.
CATALOGUE
MACHINE · BOWL
VF-4 to VF-50 · 4–50 cu ft
Processes multiple parts together in a single batch, increasing efficiency and productivity. Achieve superior surface finishes, with consistent results across every part.
| MODEL | CU FT | CHANNEL | BOWL DIA. |
|---|---|---|---|
| VF-4 | 4 | 9″ | 46″ |
| VF-7 | 7 | 11″ | 50″ |
| VF-10 | 10 | 11.5″ | 65″ |
| VF-14 | 14 | 15″ | 67″ |
| VF-20 | 20 | 16″ | 75″ |
| VF-24 | 24 | 15″ | 88″ |
| VF-50 | 50 | 22″ | 100″ |
MACHINE · BOWL
VF-3FB to VF-20FB · 3–20 cu ft
Designed for hand pick operations. Maximum load and high vibratory efficiency, customization, a user-friendly interface and low capital cost.
| MODEL | CU FT | CHANNEL | BOWL DIA. |
|---|---|---|---|
| VF-3FB | 3 | 10″ | 39″ |
| VF-4FB | 4 | 9″ | 46″ |
| VF-10FB | 10 | 11.5″ | 65″ |
| VF-15FB | 15 | 15″ | 75″ |
| VF-20FB | 20 | 18″ | 88″ |
MACHINE · TUB
CD series · 6.5–38 cu ft
Vibra vibratory finishing machine with optional sound cover, tub divider and media unload door. Wide range of tub configurations, heavy duty with multiple shafts/bearings.
| MODEL | CU FT | WIDTH | LENGTH |
|---|---|---|---|
| CD-6.5U | 6.5 | 16″ | 55″ |
| CD-14U | 14 | 16″ | 96″ |
| CD-21U | 21 | 21″ | 96″ |
| CD-38U | 38 | 28″ | 120″ |
Shallow profile tubs shown. Deep profile tubs (CD-5U to CD-54U) are also available.
MACHINE · CONTINUOUS

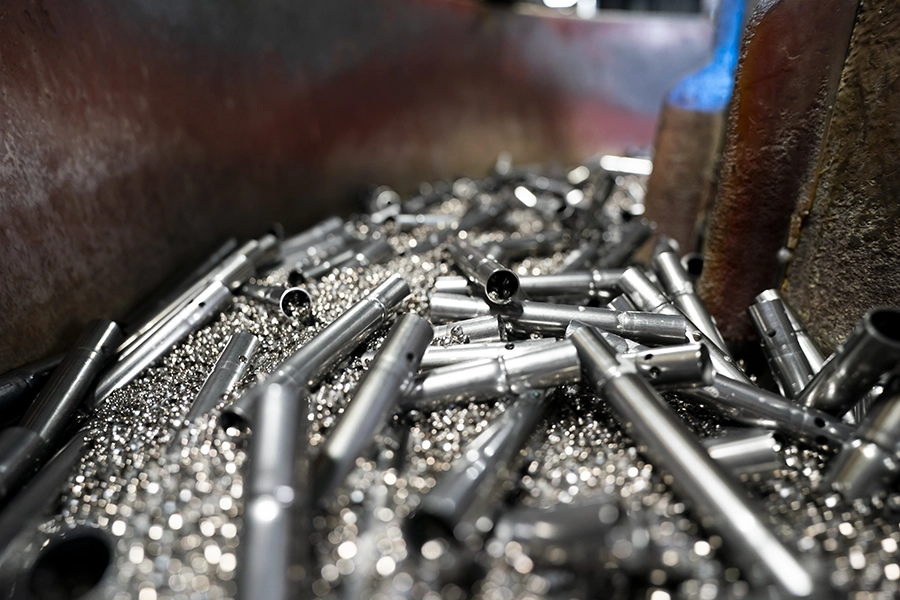

Continuous flow · TS-7 to TS-20
Racetrack style vibratory finishing system. Continuous rise spiral design provides uniform flow of parts, minimal part on part damage, positive unloading, and low cost, easy maintenance. Two stage systems reduce handling of parts and require less floor space.
| TWO STAGE | INNER | OUTER | DIAMETER |
|---|---|---|---|
| TS-7 | 11″ | 8″ | 68″ |
| TS-10 | 12″ | 9″ | 85″ |
| TS-14 | 15″ | 9″ | 85″ |
| TS-20 | 16″ | 9″ | 94″ |
MACHINE · PORTABLE
5 cu ft · 110V plug-in
Portable vibratory finishing machine. Portable, powerful, runs steel media, deburrs / polishes, with 110V plug-in convenience.
| Model | PT5U |
| Working capacity | 5 cu ft |
| Tub width × length | 15.5″ × 44″ |
MACHINE · PEENER
Built to your part
In Vibra-Max technology, each machine is built specific to customer part requirements. Deeper compressive residual stress, improved fatigue life, increased wear resistance and improved surface finish.
MEDIA
Heavy cut · steel & stainless

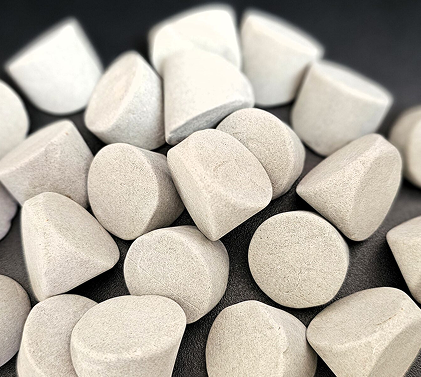

Ceramic Media is recommended for light and heavy deburring, tough metal removal and cutting hard or heavy metals such as steel or stainless steel. It is also used to remove rust on parts and general purpose polishing various materials.
Shapes: angle-cut cylinders (22°, 45°, 60°), angle-cut tristar, cylindrical wedge, angle-cut and straight-cut triangles.
Formulations: polish, light cut, general purpose, fast cutting and extra fast cutting.
MEDIA
Soft metals · pre-plate
Ideal for soft metals like brass or aluminum and for stringy materials. Typically used on pre-paint or pre-plate finishing, polishing, and deburring. Provides a smooth and durable finish.
Shapes: cone, triangle, tristar, cylindrical wedge, tetrahedron, pyramid, wedge.
Grades: preplate, general purpose, fast cut, zircon.
MEDIA
Peening · finishing · cleaning

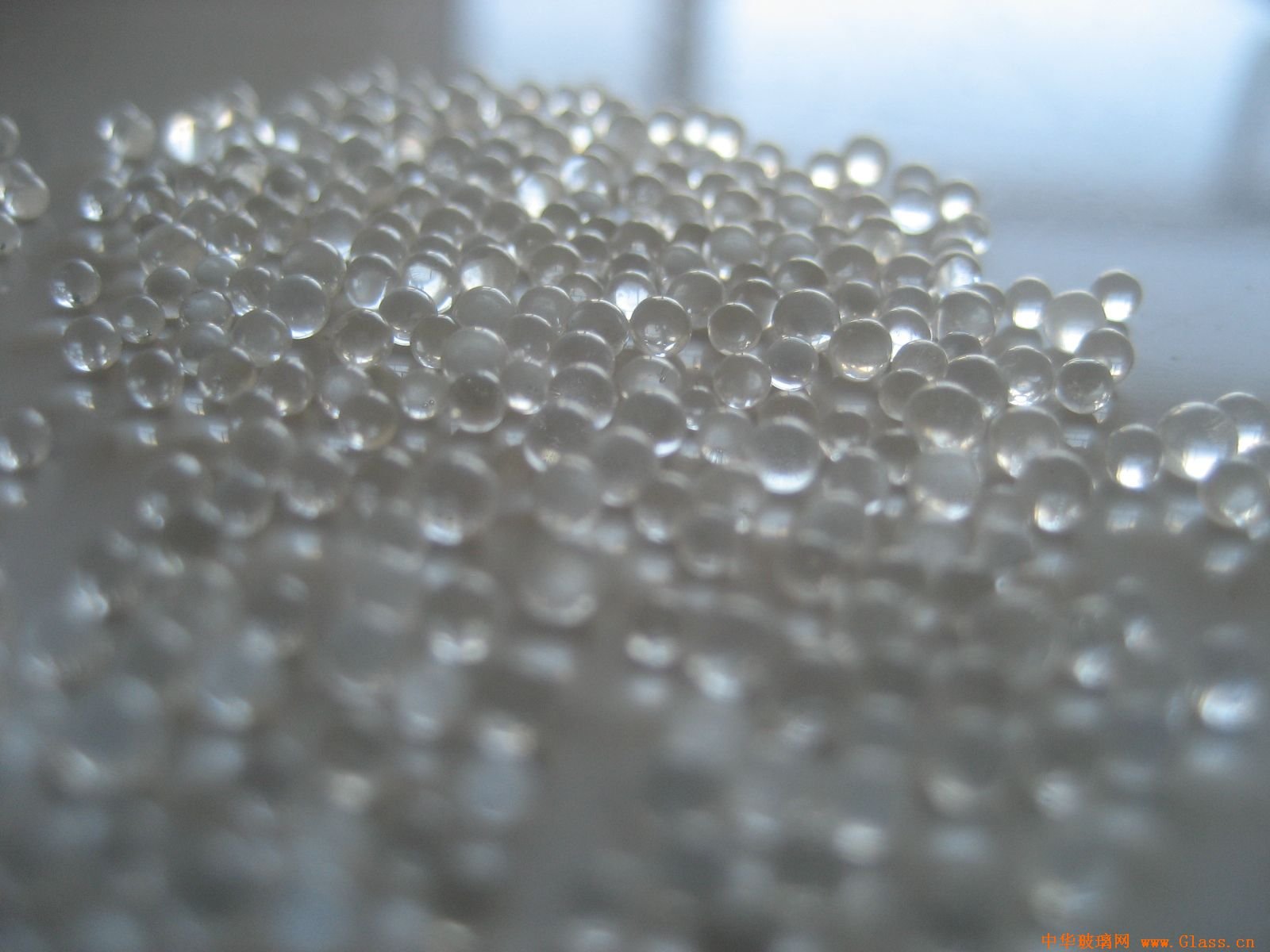

Glass beads can be used for peening, finishing or cleaning. Glass spheres used in vibratory finishing applications can smooth, burnish and polish. Glass beads are non-toxic and harmless to the environment. Available in various sizes.
MEDIA

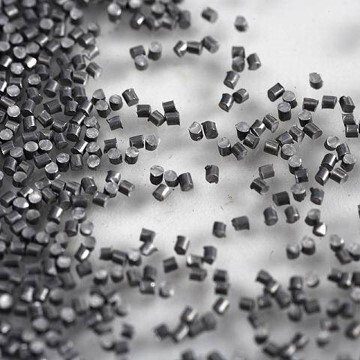

Cut wire · cast shot · grit
Media is propelled at high velocity during peening and blasting operations. Cut wire and cast steel shots can be used for both blast cleaning and shot peening while plastic media and grit are essentially used for blast cleaning. Custom sizes are available upon request.
Cut wire: CW12 (0.012″ / 0.3 mm) to CW80 (0.080″ / 2.03 mm). Cast steel shot: S70 to S550.
VIBRA-GLO · pH 11.5–12
L-350 · L-100 · L-227
For cleaning, deburring and degreasing zinc, copper, aluminum and steel/iron. pH 11.5 to 12.0 and biodegradable. Use with steel and ceramic media.
Products: L-350, L-100, L-227 · pails, drums or bulk containers.
VIBRA-GLO · pH 9.5
082G · R-501 · R-601 · AWM
For short term rust inhibition of steel / iron. pH 9.5 and biodegradable. Vibra-Glo 082G is a nitrite free water based short term rust inhibitor.
Products: 082G, R-501, R-601, AWM · 5 gal pails, 45 gal drums or bulk.
VIBRA-GLO · pH 4.8
L-243 · L-245
For polishing and burnishing zinc, brass, copper, aluminum and steel/iron. pH 4.8 and biodegradable. Use with plastic, ceramic or steel media.
Products: L-243, L-245 · pails, drums or bulk.
MACHINE SALE
To learn more about the product, click the button below to download the information sheet.
CONTACT US
We collaborate and partner with you to optimize your process. We work with you to develop a specifically catered process, through discussions and sample-part testing.
